Excel Add-in
TDengine Excel Add-in is a Microsoft Excel add-in that enables you to retrieve information from TDengine servers directly into worksheets. Combined with Microsoft Excel's calculation, charting, and formatting capabilities, TDengine Excel Add-in provides powerful tools for collecting, monitoring, analyzing, and reporting TDengine data.
Features Overview
1. Single Value Query
1.1 Current Value
Description: Get the latest real-time value of a data point.
| Item | Description | Operation |
|---|---|---|
| Data Items | Attributes of elements, one or more can be selected | 1. Enter keywords in the input box to search and select the required data item 2. Click the search icon to open advanced search conditions, fill in and confirm |
| Output Cell | The starting cell in Excel where data will be output | 1. Click a cell in Excel to auto-bind 2. Manually enter the Excel cell position, e.g., Sheet1!A1 |
| Time Position | Configuration for the time column in output data | 1. Do not display time 2. Time at left 3. Time on top (click to switch) |
Current Value Example
To view the current value of a Current data point, set the following inputs for the current value function:
| Input | Value |
|---|---|
| Data Items | Current |
| Time at left | Selected |
Current function output result:
1.2 Archive Value
Description: Get historical data at a specified point in time.
| Item | Description | Operation |
|---|---|---|
| Data Items | Attributes of elements, one or more can be selected | 1. Enter keywords in the input box to search and select the required data item 2. Click the search icon to open advanced search conditions, fill in and confirm |
| Fill Type | Query interpolation, TDengine fill clause fill type (default previous non-null value) | Supported types (dropdown selection): 1. Previous non-null value 2. Fill with custom value 3. Fill with null 4. Linear fill 5. Next non-null value |
| Fill Custom Value | The specific value to fill | Only displayed when fill type is selected as "Fill with custom value" |
| Time Stamp | The specific time to query data | Time selection box: 1. Yesterday at midnight 2. Today at midnight 3. Current time Or select a specific point in time |
| Output Cell | The starting cell in Excel where data will be output | 1. Click a cell in Excel to auto-bind 2. Manually enter the Excel cell position, e.g., Sheet1!A1 |
| Time Position | Configuration for the time column in output data | 1. Do not display time 2. Time at left 3. Time on top (click to switch) |
Archive Value Example
To view the archive value of a Current data point, set the following inputs for the archive value function:
| Input | Value |
|---|---|
| Data Items | Current |
| Fill Type | Previous non-null value |
| Time Stamp | 2026-1-5 00:00:00 |
| Time at left | Selected |
Current function output result:
2. Multiple Value Query
2.1 Raw Data
Description: Get the original time series data.
| Item | Description | Operation |
|---|---|---|
| Data Items | Attributes of elements, one or more can be selected | 1. Enter keywords in the input box to search and select the required data item 2. Click the search icon to open advanced search conditions, fill in and confirm |
| Time Range | The specific time to query data | Time selection box: 1. Yesterday's data 2. Today's data 3. Past one day's data Or select a specific time range |
| Output Cell | The starting cell in Excel where data will be output | 1. Click a cell in Excel to auto-bind 2. Manually enter the Excel cell position, e.g., Sheet1!A1 |
| Time Position | Configuration for the time column in output data | 1. Do not display time 2. Time at left 3. Time on top (click to switch) |
Raw Data Example
To view the raw data value of a Current data point, set the following inputs for the raw data function:
| Input | Value |
|---|---|
| Data Items | Current |
| Time Range | 2025-12-30 00:00:00 - 2025-12-31 00:00:00 |
| Time at left | Selected |
Current function output result:
2.2 Sampled Data
Description: Time series data sampled at fixed intervals.
| Item | Description | Operation |
|---|---|---|
| Data Items | Attributes of elements, one or more can be selected | 1. Enter keywords in the input box to search and select the required data item 2. Click the search icon to open advanced search conditions, fill in and confirm |
| Time Interval | The time interval for fetching data | Default value is hour |
| Filter Expression | Filter conditions for the data | Input box (attribute names require backticks, e.g., `current` > 5) |
| Time Range | The specific time to query data | Time selection box: 1. Yesterday hourly data 2. Today hourly data 3. Last 24 hours data 4. Last week data 5. Current month hourly data Or select a specific time range |
| Output Cell | The starting cell in Excel where data will be output | 1. Click a cell in Excel to auto-bind 2. Manually enter the Excel cell position, e.g., Sheet1!A1 |
| Time Position | Configuration for the time column in output data | 1. Do not display time 2. Time at left 3. Time on top (click to switch) |
Sampled Data Example
To view the sampled data value of a Current data point, set the following inputs for the sampled data function:
| Input | Value |
|---|---|
| Data Items | Current |
| Time Range | 2025-12-30 00:00:00 - 2025-12-31 00:00:00 |
| Time Interval | 1h |
| Time at left | Selected |
Current function output result:
2.3 Timed Data
Description: Get time series data at multiple specified points in time.
| Item | Description | Operation |
|---|---|---|
| Data Items | Attributes of elements, one or more can be selected | 1. Enter keywords in the input box to search and select the required data item 2. Click the search icon to open advanced search conditions, fill in and confirm |
| Fill Type | Query interpolation, TDengine fill clause fill type (default previous non-null value) | Supported types (dropdown selection): 1. Previous non-null value 2. Fill with custom value 3. Fill with null 4. Linear fill 5. Next non-null value |
| Fill Custom Value | The specific value to fill | Only displayed when fill type is selected as "Fill with custom value" |
| Time Stamp | The specific time to query data | Input box: can enter multiple time points |
| Output Cell | The starting cell in Excel where data will be output | 1. Click a cell in Excel to auto-bind 2. Manually enter the Excel cell position, e.g., Sheet1!A1 |
| Time Position | Configuration for the time column in output data | 1. Do not display time 2. Time at left 3. Time on top (click to switch) |
Timed Data Example
To view the timed data value of a Current data point, set the following inputs for the timed data function:
| Input | Value |
|---|---|
| Data Items | Current |
| Fill Type | Previous |
| Time Stamp | 2025-12-31 09:00:00, 2025-12-30 08:00:00 |
| Time at left | Selected |
Current function output result:
3. Calculation Functions
3.1 Calculated Data
Description: Get time series data processed with TDengine aggregate functions.
| Item | Description | Operation |
|---|---|---|
| Data Items | Attributes of elements, one or more can be selected | 1. Enter keywords in the input box to search and select the required data item 2. Click the search icon to open advanced search conditions, fill in and confirm |
| Time Interval | The time interval for fetching data | Default value is hour |
| Filter Expression | Filter conditions for the data | Input box (attribute names require backticks, e.g., `current` > 5) |
| Time Range | The specific time to query data | Time selection box: 1. Yesterday hourly data 2. Today hourly data 3. Last 24 hours data 4. Last week data 5. Current month hourly data Or select a specific time range |
| Aggregate Function | Aggregate processing of data | Dropdown select the specific TDengine aggregate function name |
| Output Cell | The starting cell in Excel where data will be output | 1. Click a cell in Excel to auto-bind 2. Manually enter the Excel cell position, e.g., Sheet1!A1 |
| Time Options | Configuration for time options in output data | Checkboxes: 1. Display start time 2. Display end time 3. Display max/min time |

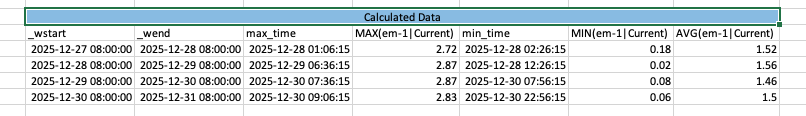

Calculated Data Example
To view the calculated data value of a Current data point, set the following inputs for the calculated data function:
| Input | Value |
|---|---|
| Data Items | Current |
| Time Interval | 1d |
| Time Stamp | 2025-12-28 00:00:00-2025-12-31 00:00:00 |
| Aggregate Function | AVG |
| Display start time, Display end time, Display max/min time | Selected |
Current function output result:
3.2 Time Filtered
Description: Return the total duration within a specified time range that meets the condition (specified by expression).
| Item | Description | Operation |
|---|---|---|
| Data Items | Attributes of elements, one or more can be selected | 1. Enter keywords in the input box to search and select the required data item 2. Click the search icon to open advanced search conditions, fill in and confirm |
| Time Interval | The time interval for fetching data | Default value is hour |
| Expression | Start condition START WITH, end condition END WITH | Input box (attribute names require backticks, e.g., `current` > 5) |
| Time Range | The specific time to query data | Time selection box: 1. Yesterday hourly data 2. Today hourly data 3. Last 24 hours data 4. Last week data 5. Current month hourly data Or select a specific time range |
| Time Unit | Time unit conversion for output | Default is seconds, dropdown select |
| Output Cell | The starting cell in Excel where data will be output | 1. Click a cell in Excel to auto-bind 2. Manually enter the Excel cell position, e.g., Sheet1!A1 |
| Time Position | Configuration for the time column in output data | 1. Do not display time 2. Time at left 3. Time on top (click to switch) |
Time Filtered Example
To view the time filtered value of a Current data point, set the following inputs for the time filtered function:
| Input | Value |
|---|---|
| Data Items | Current |
| START WITH | `Current` > 0 |
| END WITH | `Current` < 2 |
| Time Interval | 1d |
| Time Range | 2025-12-28 00:00:00-2025-12-31 00:00:00 |
| Time Unit | Seconds |
| Display start time, Display end time | Selected |
Current function output result:
4. Event Analysis
4.1 Explore Events
Description: Return events matching the specified search conditions.
Event Explorer Example
To view events, set the following inputs for the event explorer function:
| Input | Value |
|---|---|
| Name | Voltage High Warning |
| Columns to Display | All |
Current function output result:
5. Search
5.1 Attribute Filter
Description: Return attributes matching the specified search conditions.

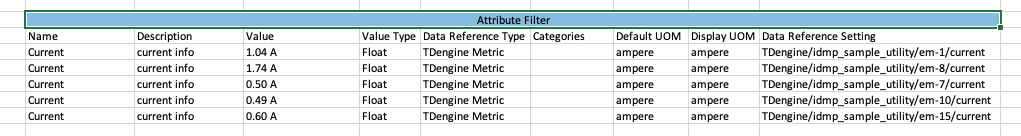

Attribute Filter Example
To view attribute filters, set the following inputs for the attribute filter function:
| Input | Value |
|---|---|
| Name | Current |
| Max Results | 5 |
| Columns to Display | All |
Current function output result:
5.2 Asset Filter
Description: Return elements matching the specified search conditions.

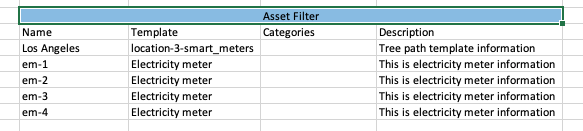

Asset Filter Example
To view assets, set the following inputs for the asset filter function:
| Input | Value |
|---|---|
| Root Path | /Elements/Utilities/California/Los Angeles County/Los Angeles |
| Max Results | 5 |
| Columns to Display | All |
Current function output result:
6. Properties
Description: Query the attributes of a specific attribute.
Properties Example
To view the properties of an attribute, set the following inputs for the properties function:
| Input | Value |
|---|---|
| Data Items | Current |
| Property | Description |
Current function output result:
7. Update
Description: Trigger data updates in the worksheet.
Operation Buttons:
- OK: Execute data query and update current add-in data once
- Apply: Update current add-in data according to the selected refresh frequency
- Update: Update all data in the Excel workspace
8. Settings
Description: Configure data output to Excel.
| Item | Description |
|---|---|
| Time Format | Time column format in Excel output. Default YYYY-MM-DD HH:mm:ss |
| Number Format | Number column format in Excel output. Format string can be any valid number format code in Excel format window |
| Max Event Explorer Search Results | Maximum number of results returned by event explorer |
| Max Attribute/Asset Filter Results | Maximum number of results returned by attribute/asset filter |
| Auto Update - Interval | Data refresh frequency when "Apply" function is enabled |
